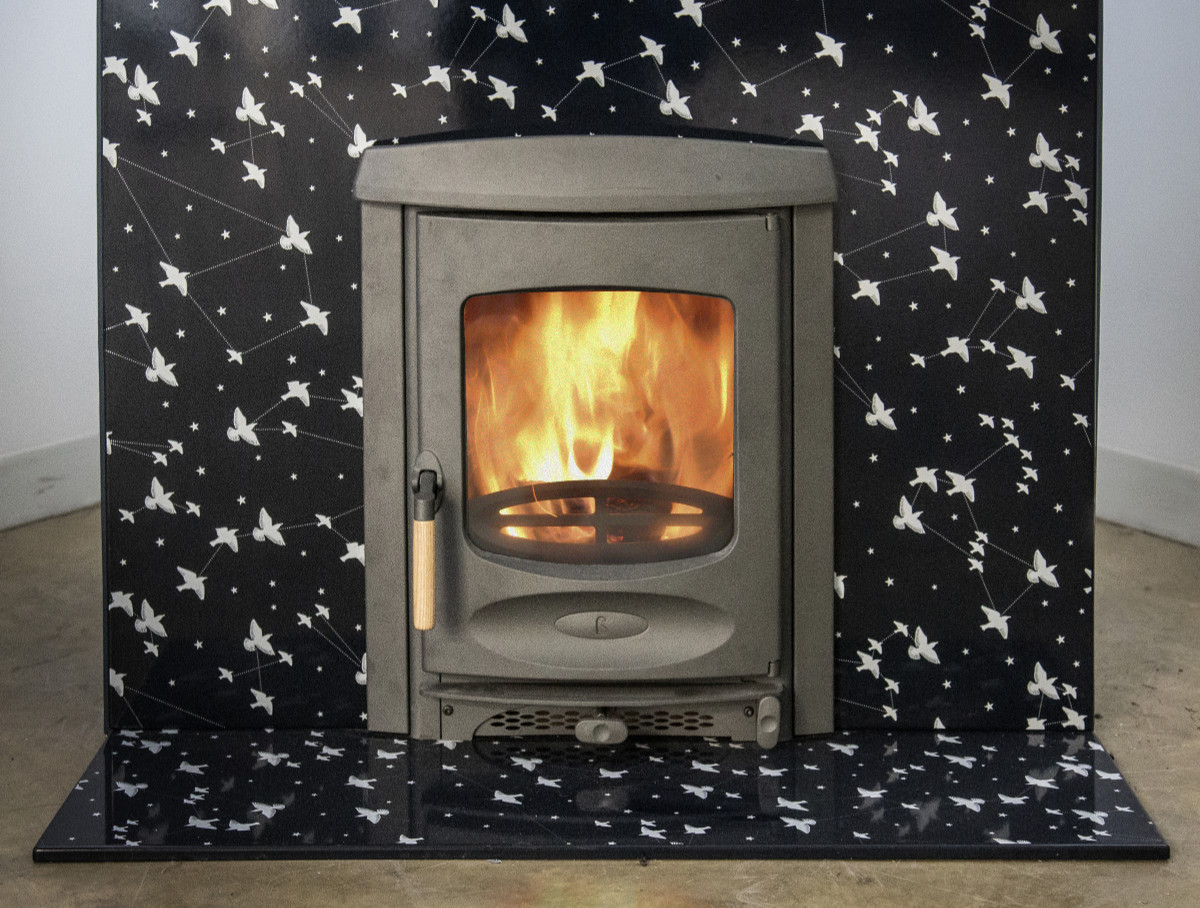

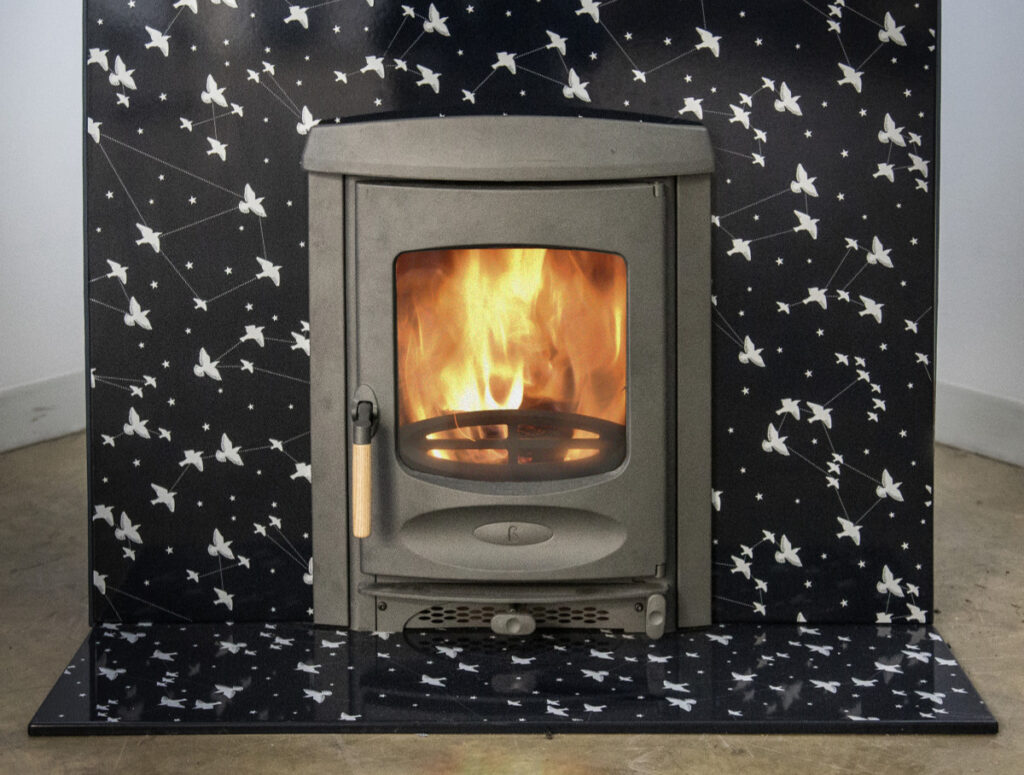

Charnwood C-Four Insert

Based on the free standing C-Four this stove is designed to fit into a standard fireplace. Featuring a single air control and an integrated outlet for ducting external air the C-Four Insert burns exceptionally clean with outsdanding efficiency. This stove also features a converting grate for efficient multi fuel burning.

All C-Series models are designed to meet DEFRA requirements for smoke control exemption; allowing wood to be burnt in smoke control areas.

The C-Four Insert is also available in a low-emissions version, The C-Four Insert Blu. This is a wood burning only model that complies with the new EcoDesign Requirements that will become compulsory in 2022.



SPECIFICATIONS – Charnwood C-Four Insert

Output 5kW
Energy Efficiency Rating A +
Net Efficiency 80.0%
Ecodesign Ready standard version: no ; Blu version: yes
Clean Burn Airwash Technology yes
Construction plate steel with cast iron door, ceramic glass
Flue Outlet  top and rear
Flue Diameter 150mm (6″)
Grate Type wood burning or multifuel drop in grate (Blu is wood burning only)
Guarantee 10 years
Additional Options colours available
Max Log Length 255mm
Boilers available no

DOWNLOAD PRODUCT SPECIFICATION PDF
DIMENSIONS

Height (external frame dimensions)  590mm
Width (external frame dimensions)  485mm
Depth  383mm
Height to centre of rear flue  458mm
Depth to centre of top flue  121mm
